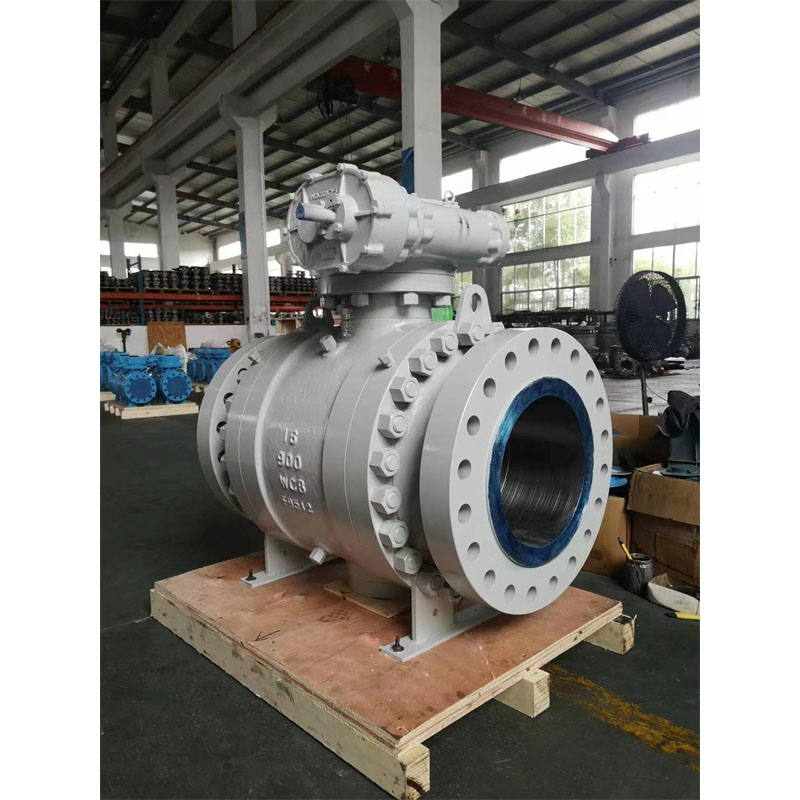

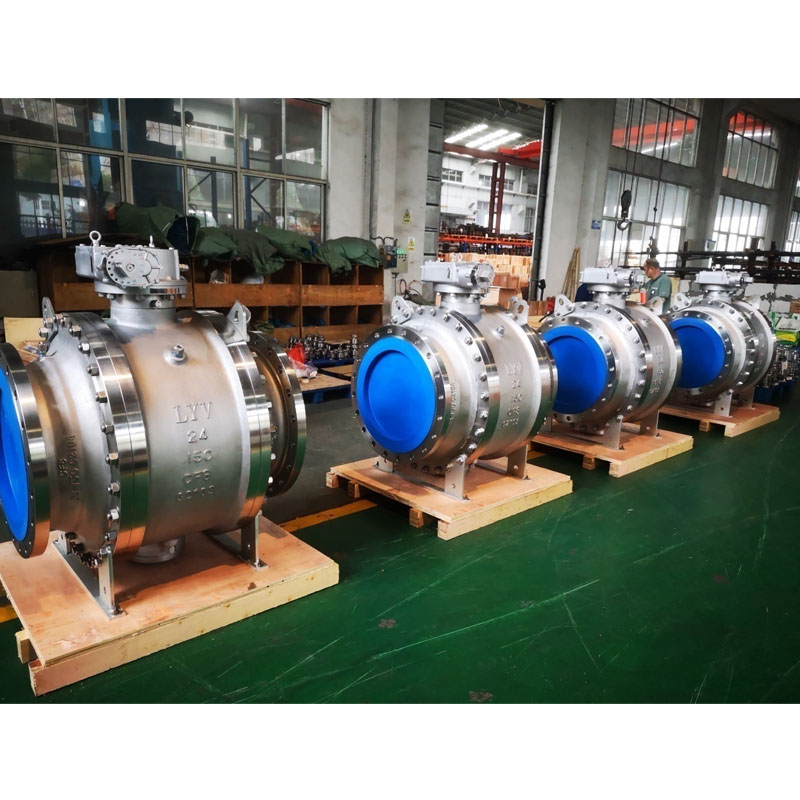

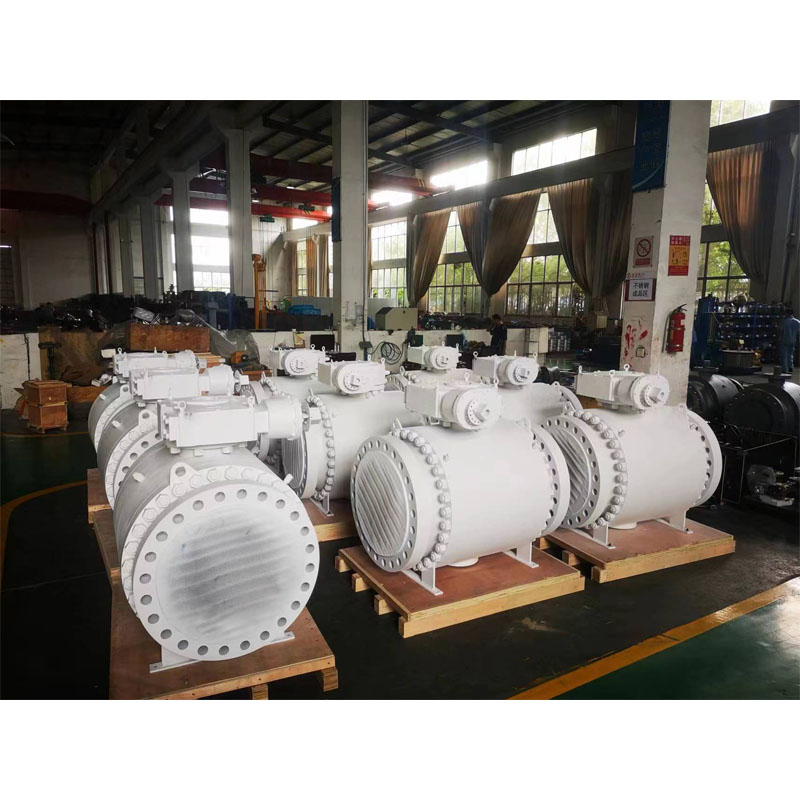

Api 6d Ball Valvulae

LYV est professionalis industrialis Api 6d Ball Valvulae fabrica, valvulae variae educendi ad Americanam, Canadiam, Southeast Asia, Russiam, et Orientem Medium etc. Cum apparatu CNCs et opifices peritissimi, plus quam 50,000pcs API 6D valvulae per annos producere possumus. expecta, elit ut confidas.

Design & Testing International Standard of Two piece ball valvae/Tres globi valvae

Design Standard : ASME B 16.34 /API 6D

Inspectio & Testing Standard : API 598/ API 6D

Ignis Tutus Testing Standard : API 607/API 6FA

LABIUM ad LABIUM Longitudo: ANSI B 16.10 -Short forma / Long exemplaris

Finis Connection : Finis Flanged ad ANSI B 16.5, Butt Weld fines, Stock Weld finit.

Corporis fabrica amplitudo et pressio dolor:

NPS 1/2" ad 48" (pro ANSI Classis 150LB)

NPS 1/2" ad 48" (pro ANSI Classis 300LB)

NPS 1/2" ad 48" (pro ANSI Classis 600LB)

NPS 1/2" ad 36" (pro ANSI Classis 900LB)

NPS 1/2" ad 24" (pro ANSI Classis 1500LB)

NPS 1/2" ad 12" (pro ANSI Classis 2500LB)

Pipe Bore: plena Bore (FB) / Reduce Bore (RB)

Construction Corpus: Latus Entry

Bonnet / Cover type: Bolted Bonnet / Brief Bonnet

Sedes Type: genus mollis / Type Metal Hardseal

Influunt Directional: Uni-directional/Bi-directional

Service Medium: Naturalis Gas, Oleum, Aqua, Gas oxygonum, etc

Service: SOUR, ISO 15156/ NACE MR0175

Pluma: Ignis Salutis consilium

Anti-Static Design

Probatur ex ictu Stem

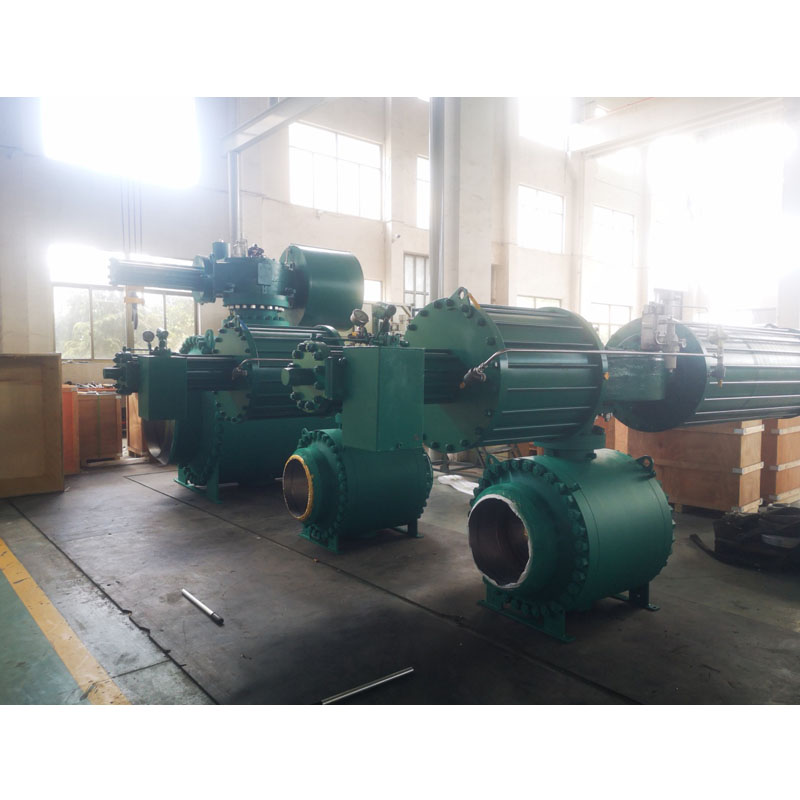

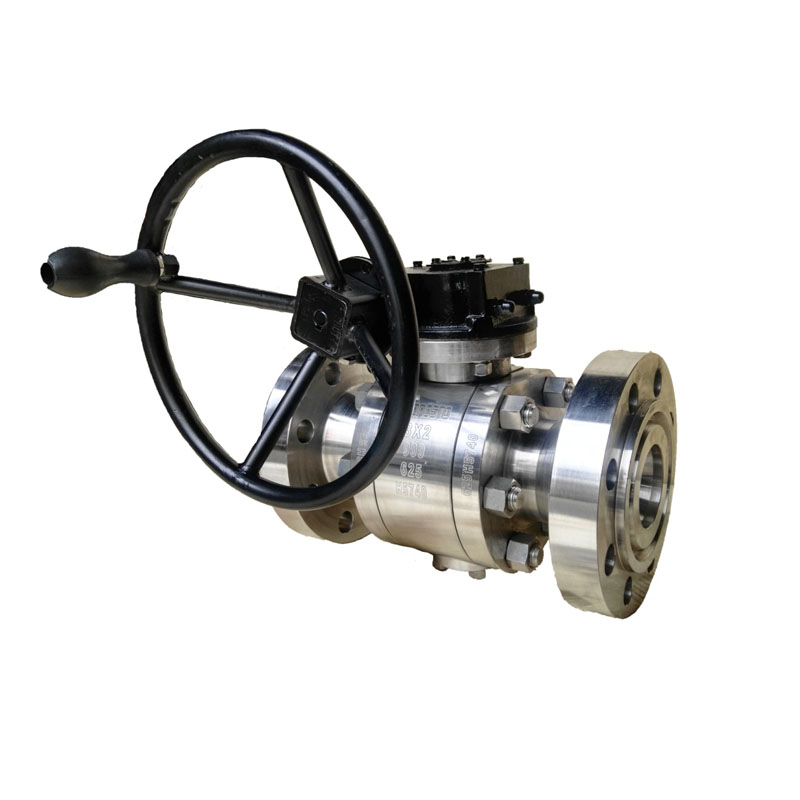

Valvae Operatio: Manual Lever / Worm-Gear / Actuator Operated/ Pneumatica Actuator / Electrical Actuator

MOC (Bill Materiales - BOM)

Corpus & Bonnet: ASTM A 216 GR. WCB/ASTM A105N (Carbon steel)

: ASTM A352 LCB / LCC /ASTM A350 LF2 ( Temp.

: ASTM A 351 GR. CF 8/ CF 8M (SS 304/SS 316)

: ASTM A 351 GR. CF 3/ CF 3M (SS 304L/SS 316L)

: ASTM A351 Gr. CF8C

: ASTM A890 4A/5A/ 6A (Duplex Steel)

Solidum Ball : ASTM A105N+ENP/ A105N+TCC

: ASTM A 182 F304 / F316 (SS 304/SS 316)

: ASTM A 182 F304L / F316L (SS 304L/SS 316L)

: ASTM A 182 F347

: ASTM A182 F51/ F53 /F55

Nota: Sedes Metalli Harseal genus pila superficiei curationis: ENP, HCR, WC, welding Ni60/ Ni55

Stem : ASTM A182 F6a

: ASTM A182 F304 / F316 / F304L / F316L

: 17/4 PH

: ASTM A182 F51/ F53/ F55

Pila Sedis & Corporis Sigilli: PTFE Virginis / 25% Vitri repleti PTFE - GFT / Carbonis repleti PTFE - CFT

: PEEK / Delrin / Grafoil - Graphite Ring

Glandula sarcina : PTFE Virginum / 25% vitrum repletum PTFE - GFT / Carbon repletum PTFE - CFT

: Grafoil - Graphite Ring
