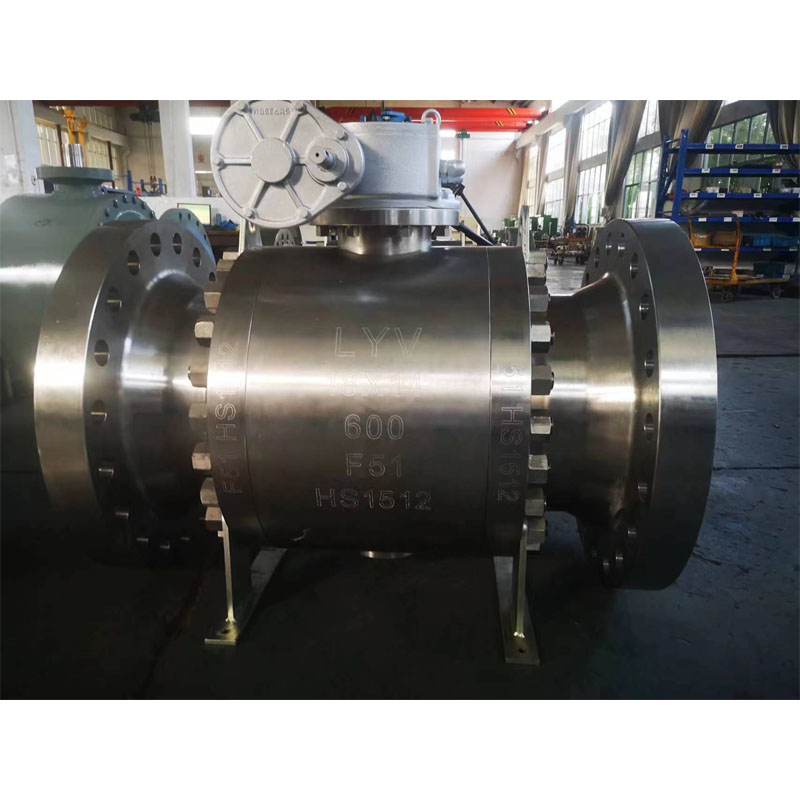

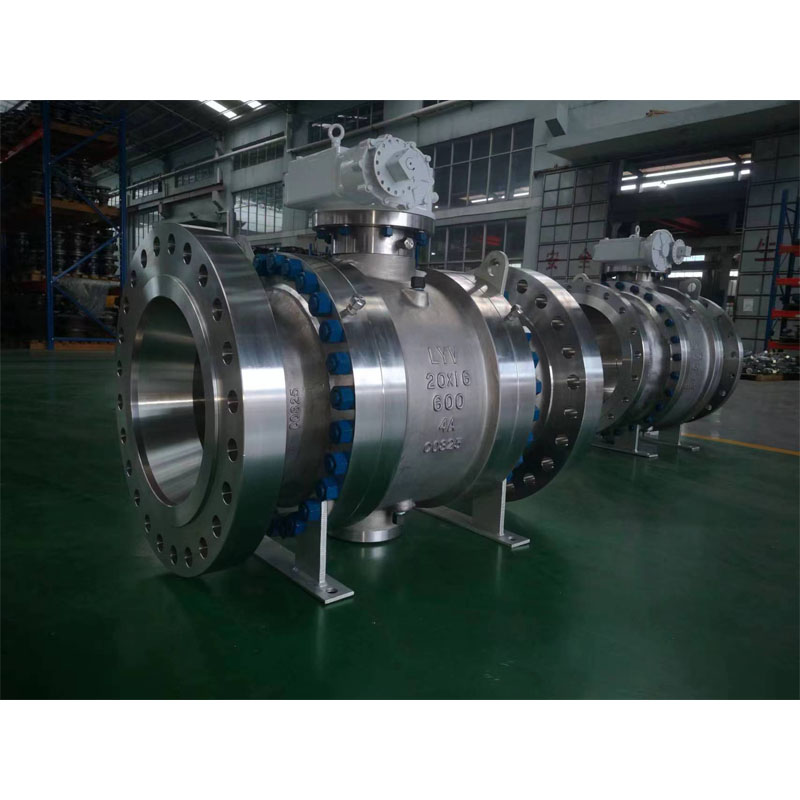

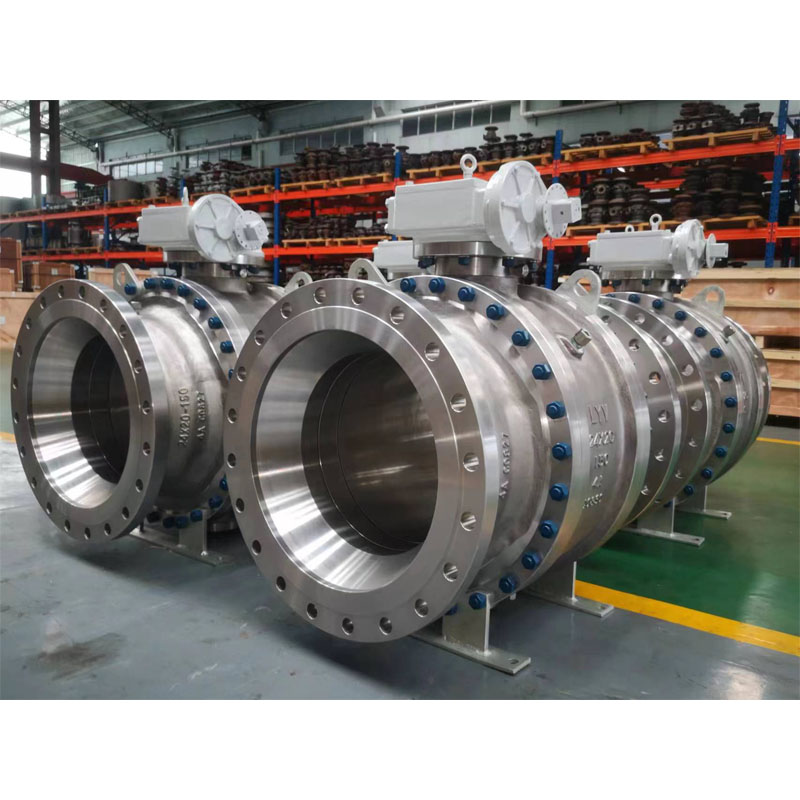

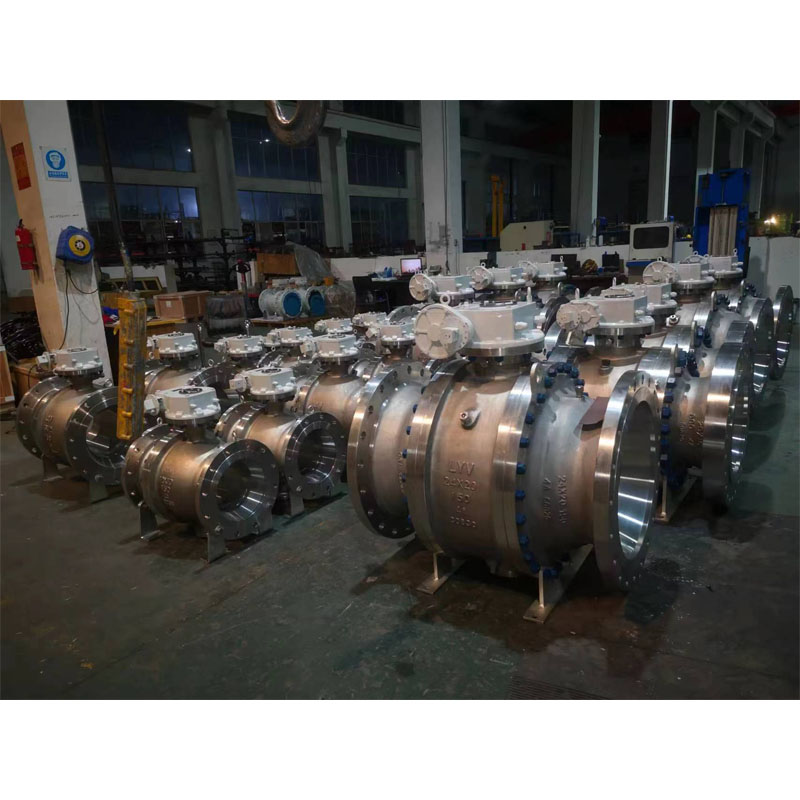

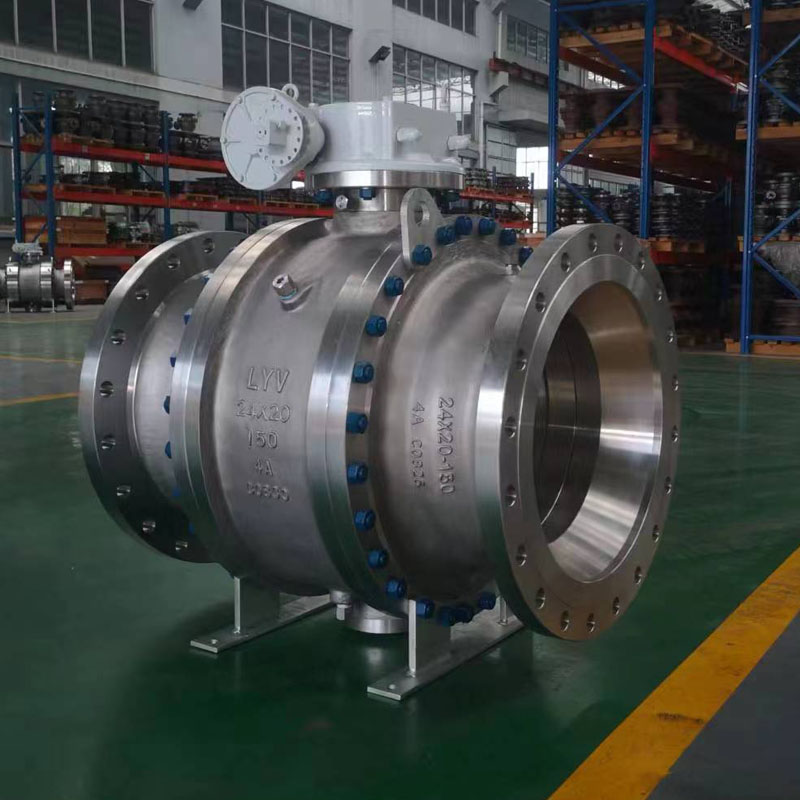

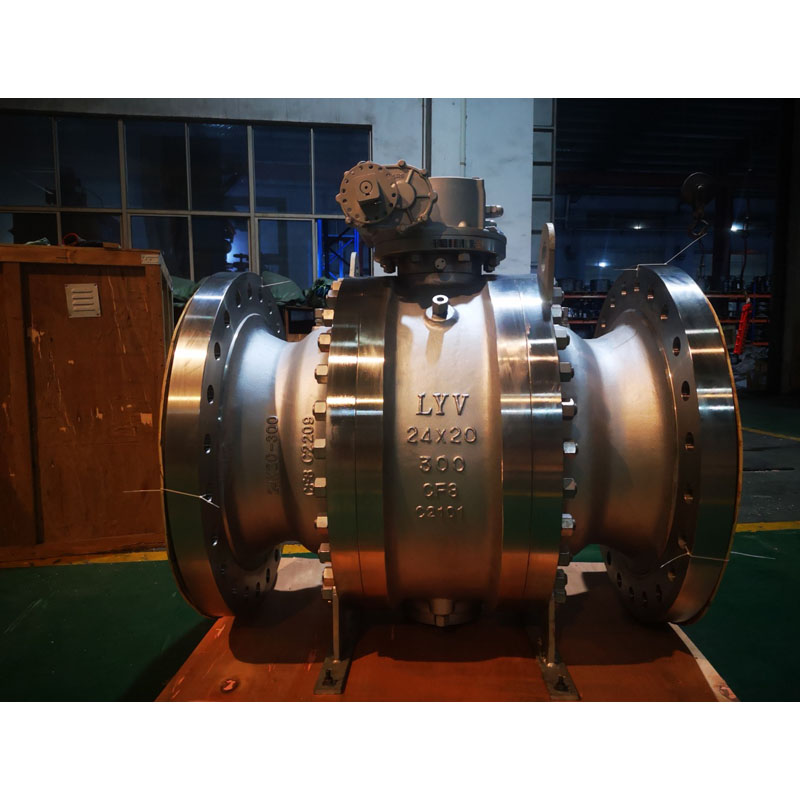

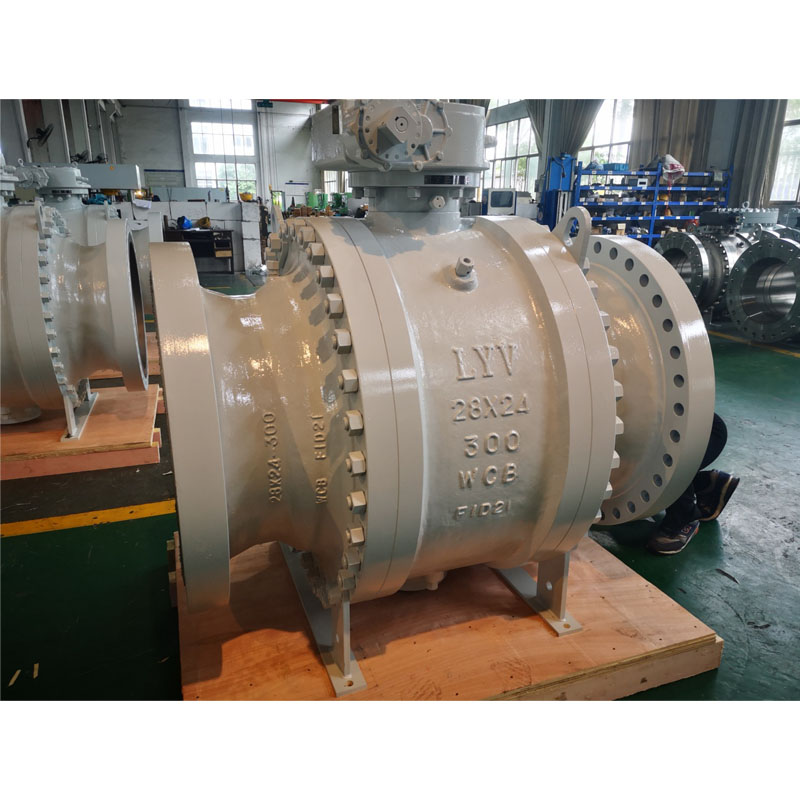

Redigendum peperit Trunnion Eques Ball Valve

LYV’s minuunt valvulae globuli trunnion boreae praelati ob altam salutem et pretium competitive. Valvulae magnae magnitudinis et altae pressionis laborantis efficimus ad Aisam, Mediam Eest, Russiam, ets. Solet reductio valvae borealis est circiter 30% levior respectu eiusdem magnitudinis valvulae pilae plenae portantis, reductio valvulae globulorum trunnionis ascendentium potest efficere operationem tutam pipeline et insuper emptionem totius systematis pipelini curare.

Trunnion Mounted Reduced Bore Ball Valve designatur cum duplici stipite et minuo seu duplici pistonis specie, quae cum systematis injectione sealant instructa tam caule quam sedilibus ad cavitatem corporis, ita ut ab utroque flumine et amni fines haurire queat, ut sedem vel truncum impediat. ultrices.

Design & Testing International Standard:

Design Standard : ISO 14313/ ASME B 16.34 /API 6D

Inspectio & Testing Standard : API 598/ API 6D

Ignis Tutus Testing Standard : API 607/API 6FA

LABIUM ad LABIUM Longitudo: ANSI B 16.10 -Short forma / Long exemplaris

Finis Connection : Finis Flanged ad ANSI B 16.5, Butt Weld fines, Stock Weld finit.

Corporis fabrica amplitudo et pressio dolor:

NPS 2 ad 48 (pro ANSI Classis 150LB)

NPS ad 48€ (pro ANSI Classis 300LB)

NPS ad 48€ (pro ANSI Classis 600LB)

NPS ad 36' (pro 900LB ANSI Classis)

NPS ad 24' (pro ANSI Classis 1500LB)

NPS ad 12€ (pro ANSI Classis 2500LB)

Pipe Bore: Reduce Bore (RB)

Construction Corpus: Finis Entry

Bonnet / Cover type: Bolted Bonnet / Brief Bonnet

Sedes Type: mollis genus / Hardseal Metal Type

Influunt Directional: Uni-directional/Bi-directional

Service Medium: Naturalis Gas, Oleum, Aqua, Gas oxygonum, etc

Service: SOUR, ISO 15156/ NACE MR0175

Emissio fugitiva: ISO 15848

Pluma: Ignis Salutis consilium

Anti-Static Design

Probatur ex ictu Stem

Duplex scandalum et caeruleum design

ISO 5211 Mounted IPAD

Valvae Operatio: Manual Lever / Worm-Gear / Actuator Operated/ Pneumatica Actuator / Motor Actuator

MOC (Bibliotheca Materialium BOM):

Corpus & Bonnet: ASTM A 216 GR. WCB/ASTM A105N (Carbon steel)

: ASTM A352 LCB / LCC /ASTM A350 LF2 ( Temp.

: ASTM A 351 GR. CF 8/ CF 8M (SS 304/SS 316)

: ASTM A 351 GR. CF 3/ CF 3M (SS 304L/SS 316L)

: ASTM A351 Gr. CF8C

: ASTM A890 4A/5A/ 6A (Duplex Steel)

Solidum Ball : ASTM A105N+ENP/ A105N+TCC

: ASTM A 182 F304 / F316 (SS 304/SS 316)

: ASTM A 182 F304L / F316L (SS 304L/SS 316L)

: ASTM A 182 F347

: ASTM A182 F51/ F53 /F55

Nota: Sedes Metalli Harseal genus pila superficiei curationis: ENP, HCR, WC, welding Ni60/ Ni55

Stem : ASTM A182 F6a

: ASTM A182 F304 / F316 / F304L / F316L

: 17/4 PH

: ASTM A182 F51/ F53/ F55

Metallum Seat Ringo : : ASTM A105N+ENP/ A105N+TCC

: ASTM A 182 F304 / F316 (SS 304/SS 316)

: ASTM A 182 F304L / F316L (SS 304L/SS 316L)

: ASTM A 182 F347

: ASTM A182 F51/ F53 /F55

Nota: Sedes Metalli Harseal genus Curationis Sedes Ringonis Superficies: ENP, HCR, WC, Welding Ni60/ Ni55

Sedes signantes : PTFE Virginum / 25% vitrum repletum PTFE â GFT / carbonis repletum PTFE – CFT.

: PEEK / Delrin / Grafoil – Graphite Ring

Gland sarcina : PTFE Virginum / 25% vitrum repletum PTFE â GFT / carbonis repletum PTFE – CFT.

: Grafoil – Graphite Ring

Quid est reducta valvula globulus portans?

Valvae globulus borealis reductus genus est valvae pilae quod valvulae intra diametrum boream minor est quam tibia diametri, dum dimensionis valvae flange cum tibia diametro adhuc congruit. Necessitas operativa est, quae turbulenta et fluida fluunt rate, non sunt maioris curae, et ubi aedificatio particularum non solet evenire, valvae vitare venenatis.

Cum diametro interiore minore, valvae habitationi et pilae magnitudine minora sunt, ita ut valvae globulus borealis minui volumen minorem occupet, quae minus spatium institutionis consumit. Quid plus, materia minoris habitationi et pilae impensa materiae inferiori mandatur, afficit productos finales sumptus, totum sumptus ratio pipeline reducere.
