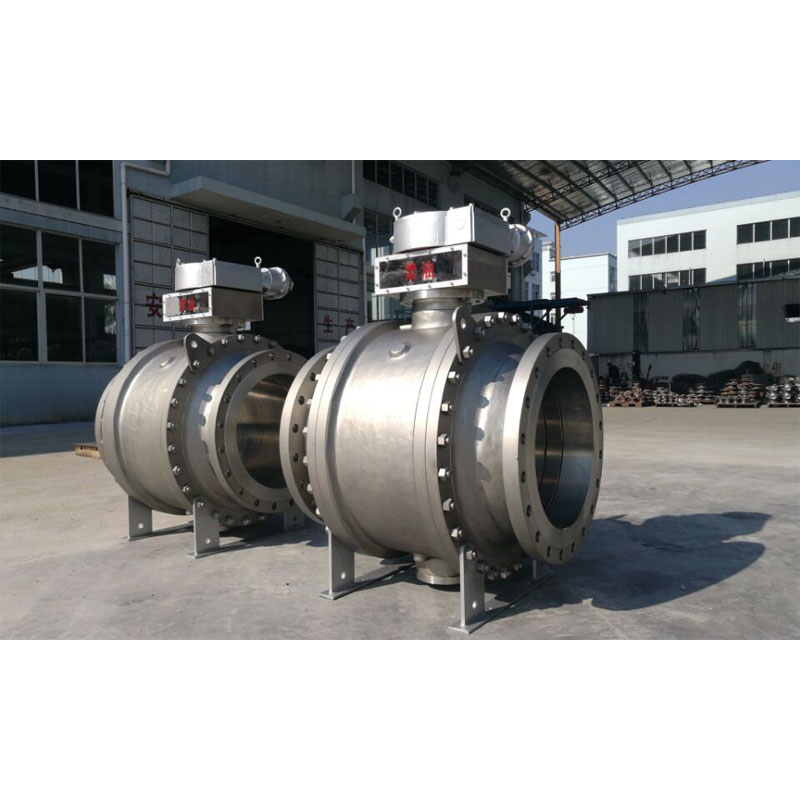

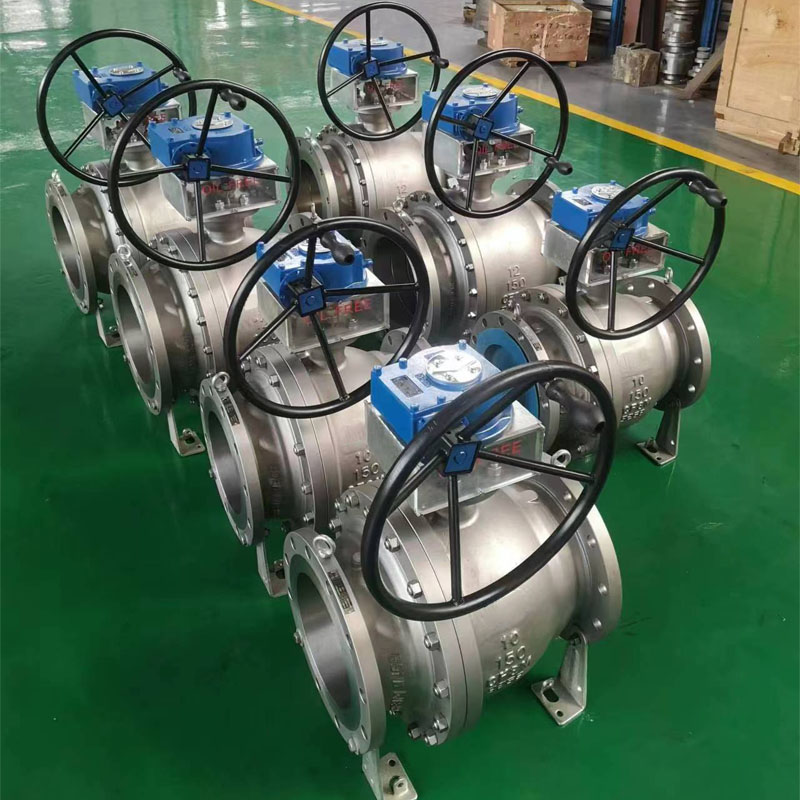

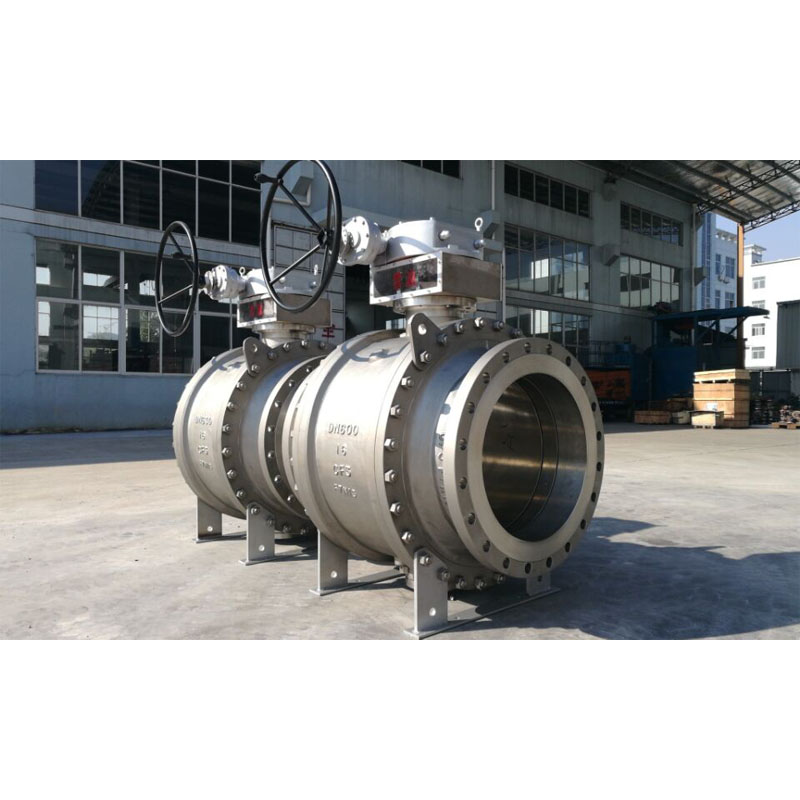

Oxygon Ball Valve

Oxygon Ball Valvae est species pilae specialis valvae quae valvae ad gas oxygonum in systemate adhibentur quae stricte Olei Free postulationem in comitio et processu institutionis esse debet.

Design & Testing International Standard of Two piece of ball valve

Design Standard : BS EN ISO 17292 (BS 5351) / ASME B 16.34 /API 6D

Inspectio & Testing Standard : API 598/ API 6D

Ignis Tutus Testing Standard : API 607/API 6FA

LABIUM ad LABIUM Longitudo: ANSI B 16.10 -Short forma / Long exemplaris

Finis Connection : Finis Flanged ad ANSI B 16.5, Butt Weld fines, Stock Weld finit.

Corporis fabrica amplitudo et pressio dolor:

NPS 1/2" ad 48" (pro ANSI Classis 150LB)

NPS 1/2" ad 48" (pro ANSI Classis 300LB)

NPS 1/2" ad 48" (pro ANSI Classis 600LB)

NPS 1/2" ad 36" (pro ANSI Classis 900LB)

NPS 1/2" ad 24" (pro ANSI Classis 1500LB)

NPS 1/2" ad 12" (pro ANSI Classis 2500LB)

or *

DN15 ad DN1200 (pro PN0.6Mpa, 1.6Mpa, PN2.0Mpa, PN2.5Mpa)

DN15 ad DN1200 (pro PN4.0Mpa, PN5.0Mpa)

DN15 ad DN1200 (pro PN6.3Mpa, PN10.0Mpa)

DN15 ad DN900 (pro PN15.0Mpa)

DN15 ad DN600 (pro PN25.0Mpa)

Pipe Bore: plena Bore (FB) / Reduce Bore (RB)

Construction Corpus: Latus Entry

Bonnet / Cover type: Bolted Bonnet / Brief Bonnet

Sedes Type: mollis genus

Influunt Directional: Uni-directional/Bi-directional

Service Medium: Oxygon gas

Pluma: Ignis Salutis consilium

Anti-Static Design

Probatur ex ictu Stem

Valvae Operatio: Manual Lever / Worm-Gear / Actuator Operated/ Pneumatica Actuator / Electrical Actuator

MOC (Bill Materiales - BOM)

Corpus & Bonnet: ASTM B148 C95800 (Al-Bronze)

: ASTM A 351 GR. CF 8/ CF 8M (SS 304/SS 316)

Solidum Ball : ASTM B148 C95800 (Al-Bronze)

: ASTM A 182 F304 / F316 (SS 304/SS 316)

Stem : ASTM B148 C95800 (Al-Bronze)

: ASTM A 182 F304 / F316 (SS 304/SS 316)

Pila Sedes & Corpus Sigilli: PTFE Virginum / 25% Vitri PTFE . repleti

: PEEK / Delrin / Grafoil - Graphite Ring

Glandula sarcina : PTFE Virginum / 25% vitrum repletum PTFE - GFT / Carbon repletum PTFE - CFT
