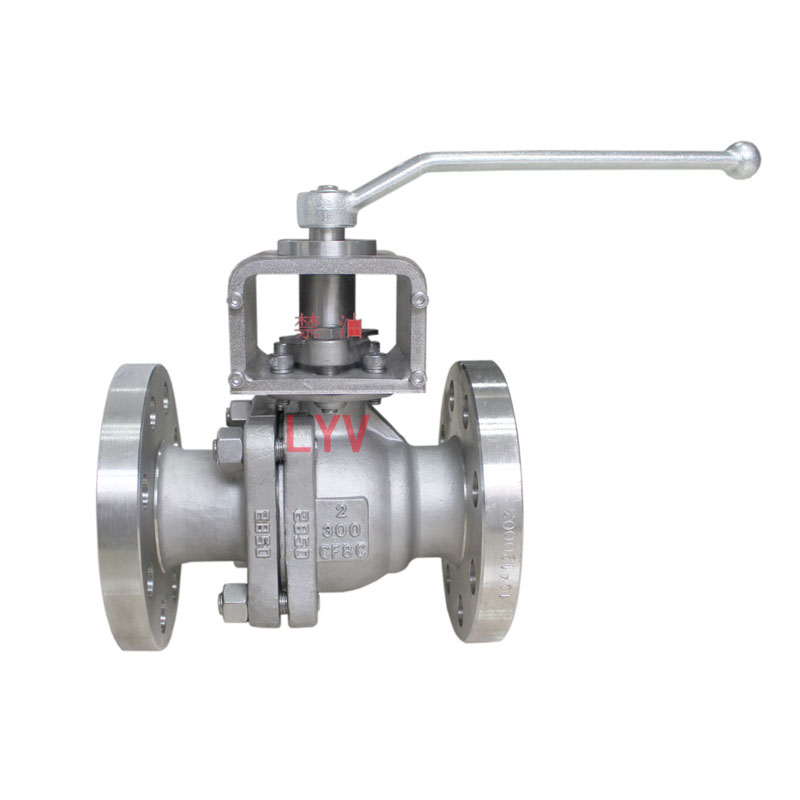

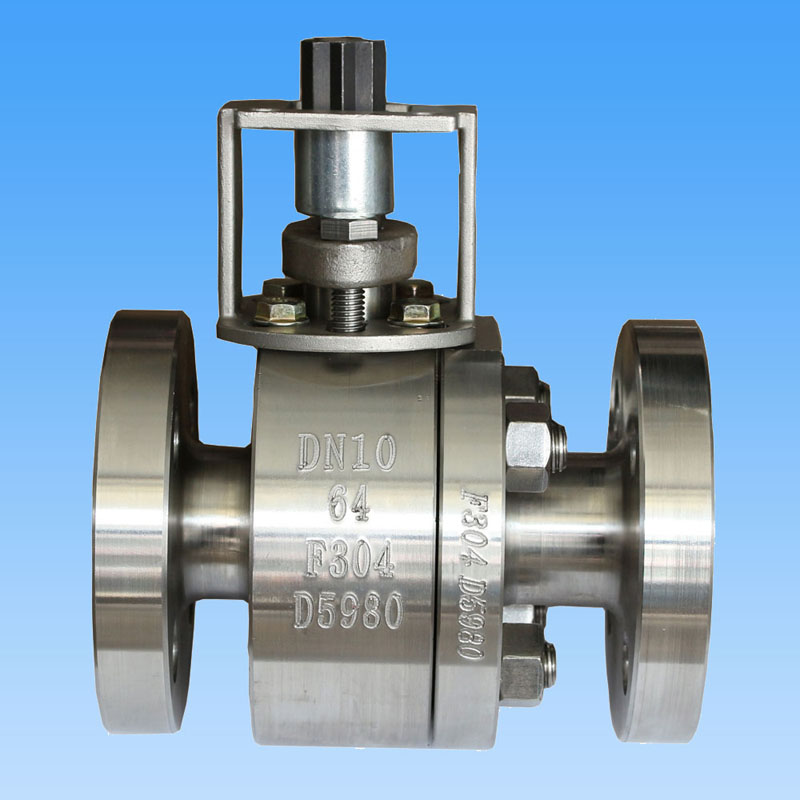

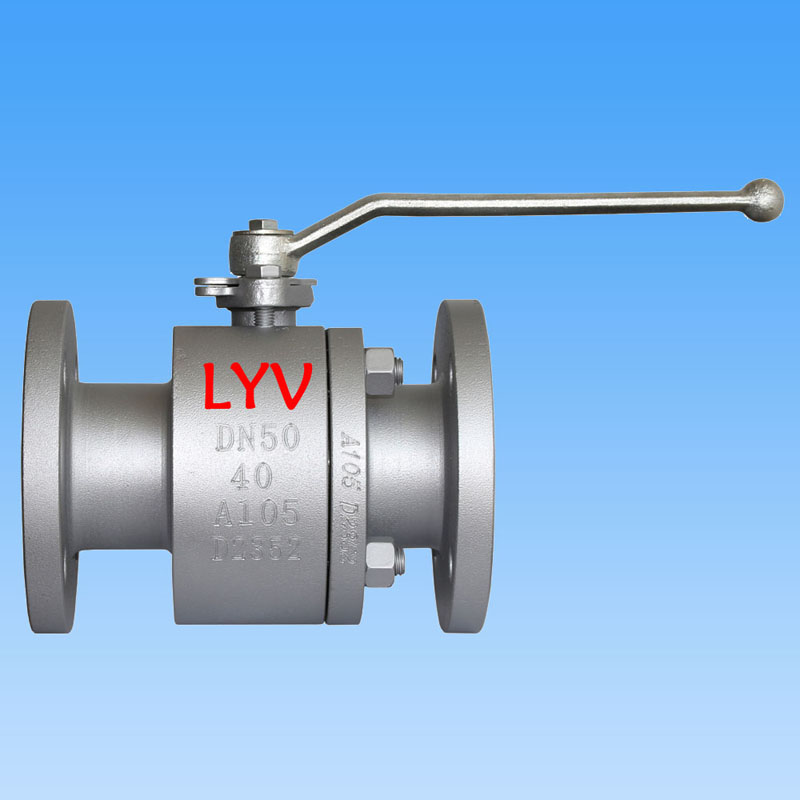

Plena Bore Floating Ball Valve

LYV® valvae pilae fluitantis plenae gestationis exscindi vel connectere medium in pipelino adhibetur, cuius lineamentum habent simile: sigillum valvae humile, frictio coefficiens, torques parva operans, varia materia sedis, late aptabilitas, aperta / Prope cum recta switch. Eodem tempore, fluitans pila valvae metalli contactum cum valvae corpore formare potest post ignem ut sigillum caulis.

Design & Testing International Standard :

Design Standard : BS EN ISO 17292 (BS 5351) / ASME B 16.34 /API 6D

Inspectio & Testing Standard : API 598/ API 6D

Ignis Tutus Testing Standard : API 607/API 6FA

LABIUM ad LABIUM Longitudo: ANSI B 16.10 -Short forma / Long exemplaris

Finis Connection : Finis Flanged ad ANSI B 16.5, Butt Weld fines, Stock Weld finit.

Corporis fabrica amplitudo et pressio dolor:

NPS 1/2€ ad 10€ (pro ANSI Classis 150LB)

NPS 1/2€ ad 8* (pro ANSI Classis 300LB)

NPS 1/2€ ad 4€ (pro ANSI Classis 600LB)

or *

DN15 ad DN250 (pro PN0.6Mpa, 1.6Mpa, PN2.0Mpa, PN2.5Mpa);

DN15 ad DN200 (pro PN4.0Mpa, PN5.0Mpa)

DN15 ad DN100 (pro PN6.3Mpa, PN10.0Mpa)

Pipe Bore: plena Bore (FB)

Constructio Corporis: Finis Entry, 2 piece/III pars

Bonnet / Cover type: Bolted Bonnet / Brief Bonnet

Sedes Type: mollis genus / Hardseal Metal Type

Influunt Directional: Uni-directional/Bi-directional

Service Medium: Naturalis Gas, Oleum, Aqua, Gas oxygonum, etc

Service: SOUR, ISO 15156/ NACE MR0175

Pluma: Ignis Salutis consilium

Anti-Static Design

Probatur ex ictu Stem

ISO 5211 Mounted IPAD

Valvae Operatio: Manual Lever / Worm-Gear / Actuator Operated/ Pneumatica Actuator / Electrical Actuator

MOC (Bibliotheca Materialium BOM):

Corpus & Bonnet: ASTM A 216 GR. WCB/ASTM A105N (Carbon steel)

: ASTM A352 LCB / LCC /ASTM A350 LF2 ( Temp.

: ASTM A 351 GR. CF 8/ CF 8M (SS 304/SS 316)

: ASTM A 351 GR. CF 3/ CF 3M (SS 304L/SS 316L)

: ASTM A351 Gr. CF8C

: ASTM A890 4A/5A/ 6A (Duplex Steel)

Solidum Ball : ASTM A105N+ENP/ A105N+TCC

: ASTM A 182 F304 / F316 (SS 304/SS 316)

: ASTM A 182 F304L / F316L (SS 304L/SS 316L)

: ASTM A 182 F347

: ASTM A182 F51/ F53 /F55

Nota: Sedes Metalli Harseal genus pila superficiei curationis: ENP, HCR, WC, welding Ni60/ Ni55

Stem : ASTM A182 F6a

: ASTM A182 F304 / F316 / F304L / F316L

: 17/4 PH

: ASTM A182 F51/ F53/ F55

Pila Sedis & Corporis Sigilli: PTFE Virginis / 25% Vitri repleti PTFE â GFT / Carbonis repleti PTFE – CFT.

: PEEK / Delrin / Grafoil – Graphite Ring

Gland sarcina : PTFE Virginum / 25% vitrum repletum PTFE â GFT / carbonis repletum PTFE – CFT.

: Grafoil – Graphite Ring

Quid est valvae pilae genus fluitantis?

Globus fluitans valvae est valvae quaedam, quae eius globum intra valvae corpus natat; ad latus amni fluit, et contra sedem pressionis mediae arcte impellitur, ut sigillum certum obtineat. Est plane simplex consilium cum bona obsignatione perficiendi et innixa in sede materiali ad inposuit portandum, cum signandi vis in throno annulis maxime imponatur. Solet fluitans valvulae pilae in systemate pipeline laborant cum pressione media et demissa rating.

Quid est valvae plenae pilae?

Valvae pilae plenae portantes maxime pro conditionibus off-offs adhibentur. In processu systematis pipelini, plurimae valvulae ordinantur ad limitandum fluxum ad quendam eminus faciendo transitum vel aream clausurae membrum minorem quam diam interiorem organi. Quaedam valvulae pilae species habent globum nimis mediocrem habent, ut fac ut transitus interni satis spatii habere possint, ut umorem transeat sine restrictionibus manifestis, quae plena vallium globulorum portantium nominatur, sicut foraminis in pila est. aequare cum pipeline diametri.
