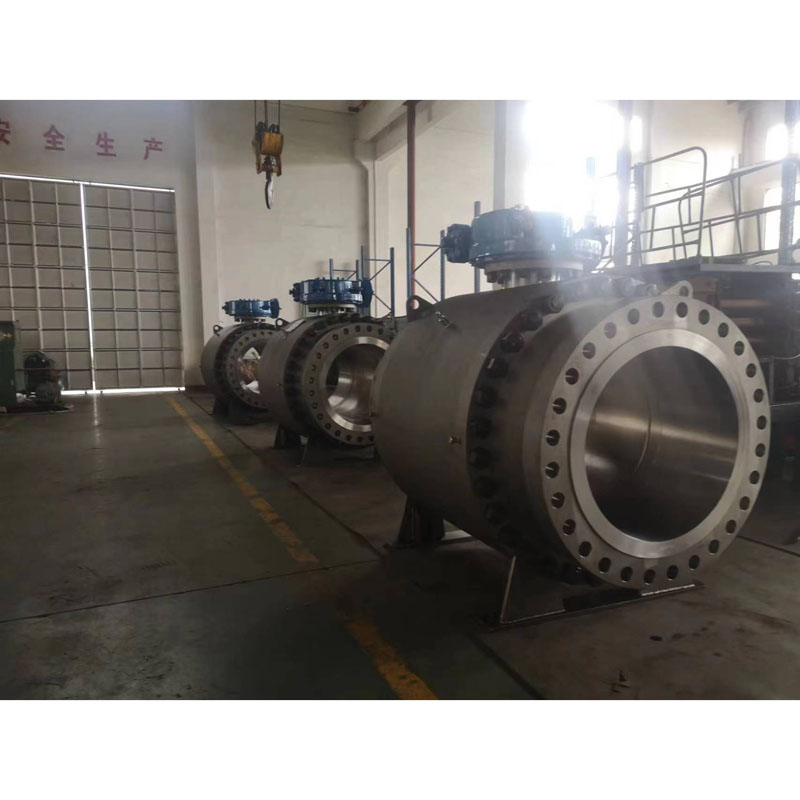

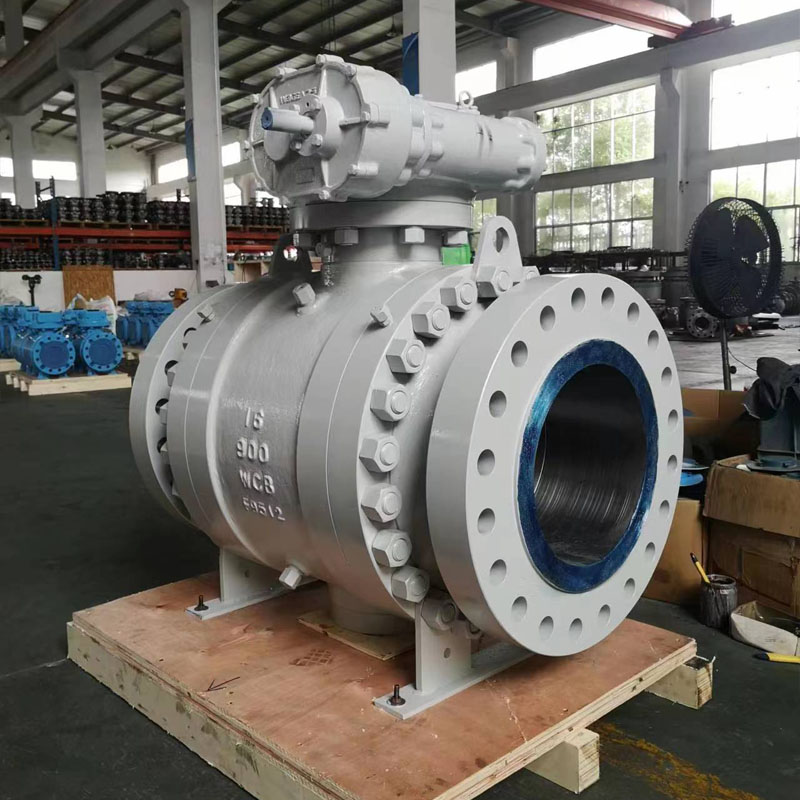

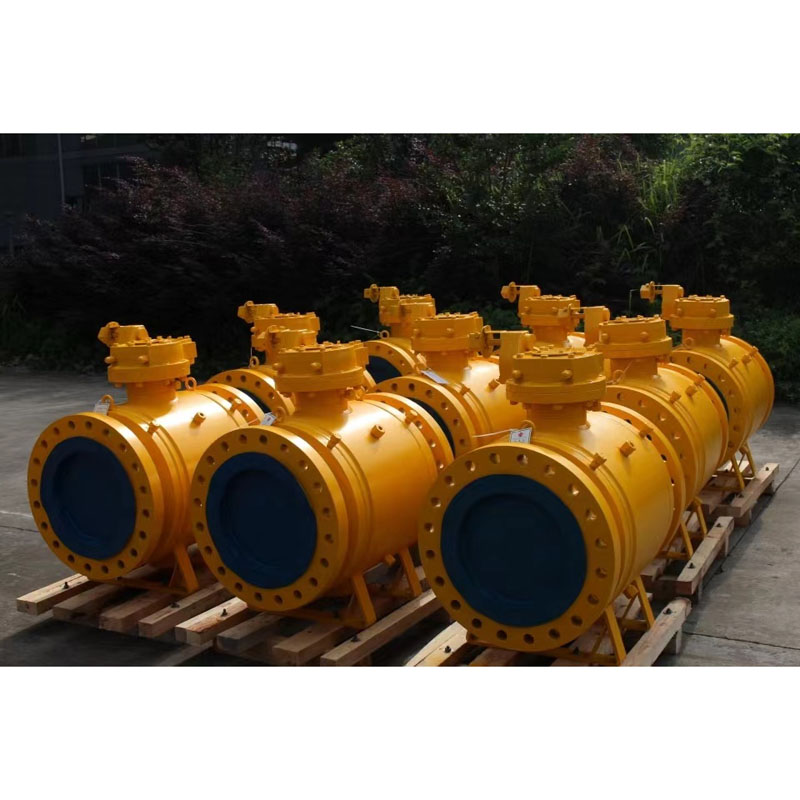

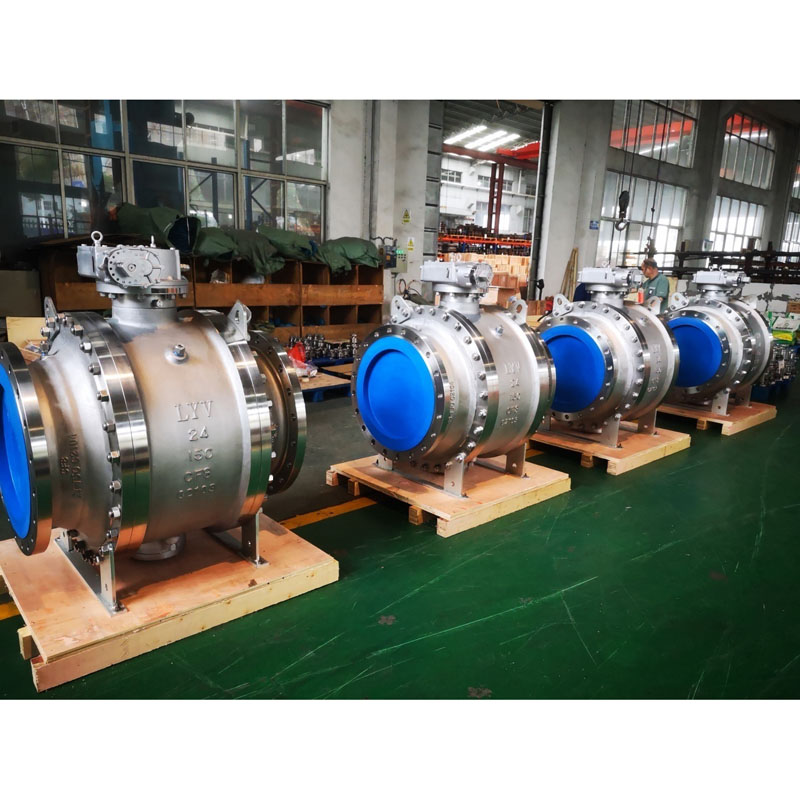

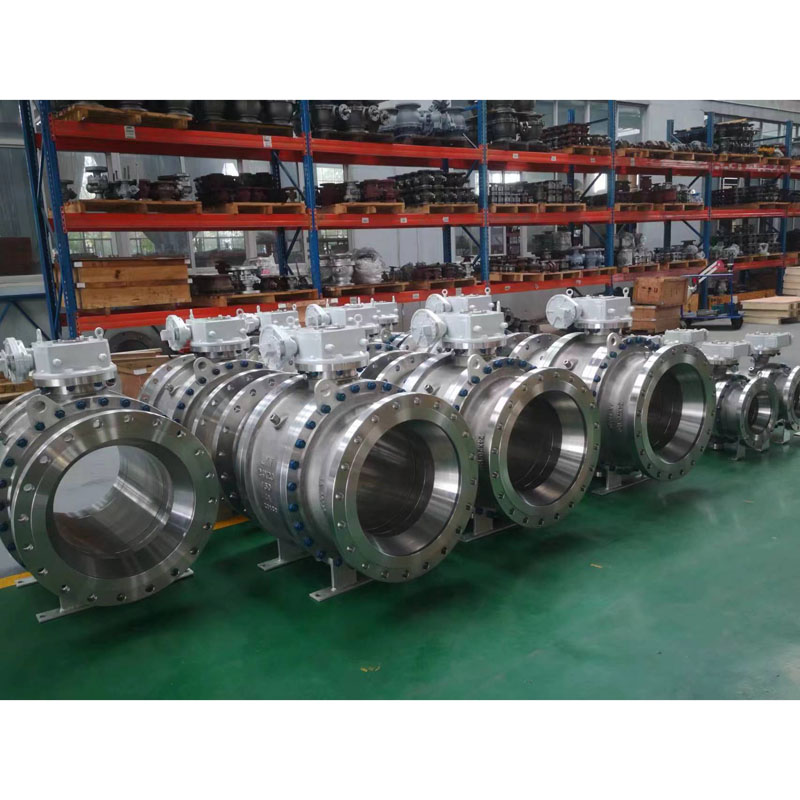

Trunnion Ejecting Ball Valve

LYV® est trunnion dejectio valvae conscendit opificem et supplementum in Sinis, cum API 6D, ISO 9001 et CE approbata. Proiectio trunnion valvulae globulus ascendens sunt trunnion valvulae globulus ascendentes quae cum processu formae eiectis ut corpus materiale & mitram ferro dejectum efficiat. Solet erimus 2 vel 3 temporibus curatio uredine in superficie corporis valves dejectiones, ut superficies blande et delicatus curet.

Trunnion dejectio Ball Valvae inenarrabilis designatur cum duplici stipite et minuendo vel duplici pistonis specie, quae cum systematis injectione sealant instructa pro utroque caule et sedibus ad cavitatem corporis, ita ut ab utroque flumine et amni finibus haurire queat, ne sedes vel truncus lacus .

Design & Testing International Standard:

Design Standard : ISO 14313/ ASME B 16.34 /API 6D

Inspectio & Testing Standard : API 598/ API 6D

Ignis Tutus Testing Standard : API 607/API 6FA

LABIUM ad LABIUM Longitudo: ANSI B 16.10 -Short forma / Long exemplaris

Finis Connection : Finis Flanged ad ANSI B 16.5, Butt Weld fines, Stock Weld finit.

Corporis fabrica amplitudo et pressio dolor:

NPS 2 ad 48 (pro ANSI Classis 150LB)

NPS ad 48€ (pro ANSI Classis 300LB)

NPS ad 48€ (pro ANSI Classis 600LB)

NPS ad 36' (pro 900LB ANSI Classis)

NPS ad 24' (pro ANSI Classis 1500LB)

NPS ad 12€ (pro ANSI Classis 2500LB)

or *

DN50 ad DN1200 (pro PN0.6Mpa, 1.6Mpa, PN2.0Mpa, PN2.5Mpa)

DN50 ad DN1200 (pro PN4.0Mpa, PN5.0Mpa)

DN50 ad DN1200 (pro PN6.3Mpa, PN10.0Mpa)

DN50 ad DN900 (pro PN15.0Mpa)

DN50 ad DN600 (pro PN25.0Mpa)

Pipe Bore: plena Bore (FB) / Reduce Bore (RB)

Construction Corpus: Finis Entry

Bonnet / Cover type: Bolted Bonnet / Brief Bonnet

Sedes Type: mollis genus / Hardseal Metal Type

Influunt Directional: Uni-directional/Bi-directional

Service Medium: Naturalis Gas, Oleum, Aqua, Gas oxygonum, etc

Service: SOUR, ISO 15156/ NACE MR0175

Emissio fugitiva: ISO 15848

Pluma: Ignis Salutis consilium

Anti-Static Design

Probatur ex ictu Stem

Duplex scandalum et caeruleum design

ISO 5211 Mounted IPAD

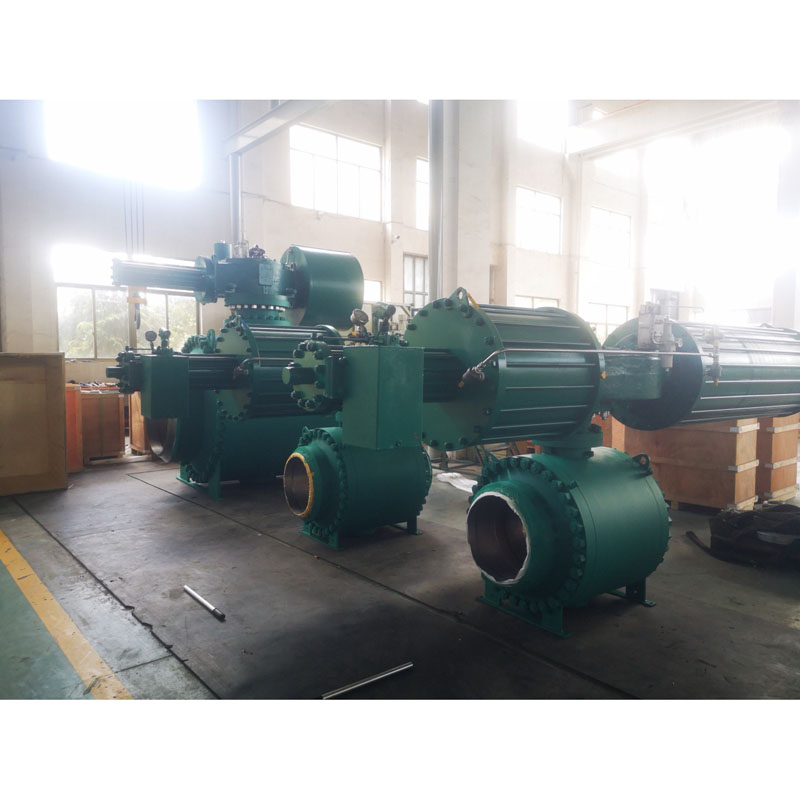

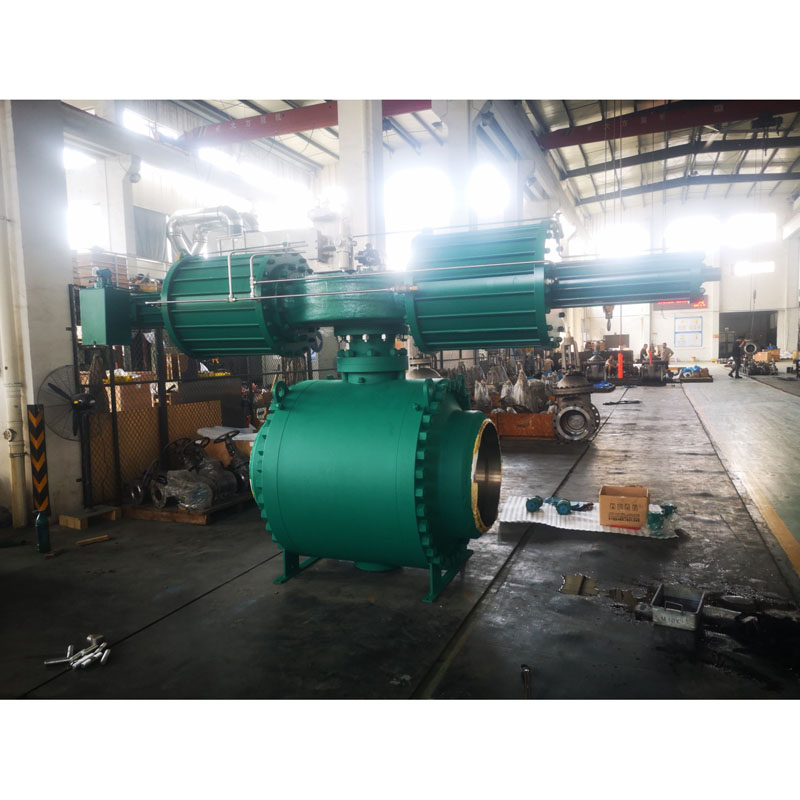

Valvae Operatio: Manual Lever / Worm-Gear / Actuator Operated/ Pneumatica Actuator / Motor Actuator

MOC (Bibliotheca Materialium BOM):

Corpus & Bonnet: ASTM A 216 GR. WCB (Carbon steel)

: ASTM A352 LCB / LCC ( Minimum temp. carbonis ferro )

: ASTM A 351 GR. CF 8/ CF 8M (SS 304/SS 316)

: ASTM A 351 GR. CF 3/ CF 3M (SS 304L/SS 316L)

: ASTM A351 Gr. CF8C

: ASTM A890 4A/5A/ 6A (Duplex Steel)

Solidum Ball : ASTM A105N+ENP/ A105N+TCC

: ASTM A 182 F304 / F316 (SS 304/SS 316)

: ASTM A 182 F304L / F316L (SS 304L/SS 316L)

: ASTM A 182 F347

: ASTM A182 F51/ F53 /F55

Nota: Sedes Metalli Harseal genus pila superficiei curationis: ENP, HCR, WC, welding Ni60/ Ni55

Stem : ASTM A182 F6a

: ASTM A182 F304 / F316 / F304L / F316L

: 17/4 PH

: ASTM A182 F51/ F53/ F55

Metallum Sea Ring: ASTM A105N+ENP/A105N+TCC

: ASTM A 182 F304 / F316 (SS 304/SS 316)

: ASTM A 182 F304L / F316L (SS 304L/SS 316L)

: ASTM A 182 F347

: ASTM A182 F51/ F53 /F55

Nota: Sedes Metalli Harseal genus Curationis Sedes Ringonis Superficies: ENP, HCR, WC, Welding Ni60/ Ni55

Sedes signantes : PTFE Virginum / 25% vitrum repletum PTFE â GFT / carbonis repletum PTFE – CFT.

: PEEK / Delrin / Grafoil – Graphite Ring

Gland sarcina : PTFE Virginum / 25% vitrum repletum PTFE â GFT / carbonis repletum PTFE – CFT.

: Grafoil – Graphite Ring

What is a Trunnion Mounted Ball Valve?

Valvae pilae trunnion elevatae est valvae quarterii flexurae quae medium fluentem in tibicinis sistit adiuvat. Unicum trunnionis valvae pilae conscendit, est eius orbis in figura rotunda vel sphaerica in centro posita. Hoc revolventis servat vel incipere fluxus prohibere.
